Radial arrow bar

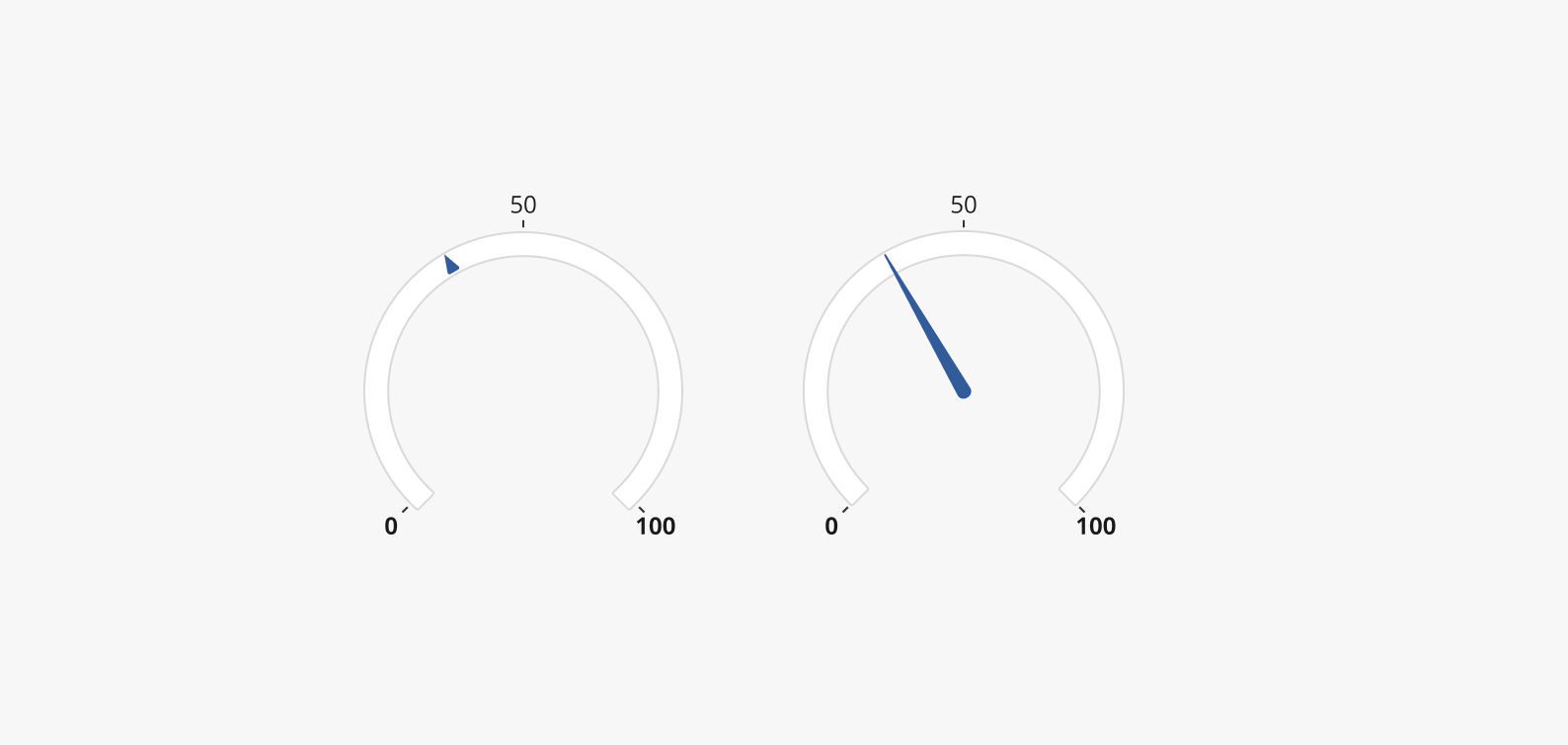

The radial arrow bars are generic components that visualize numerical values.

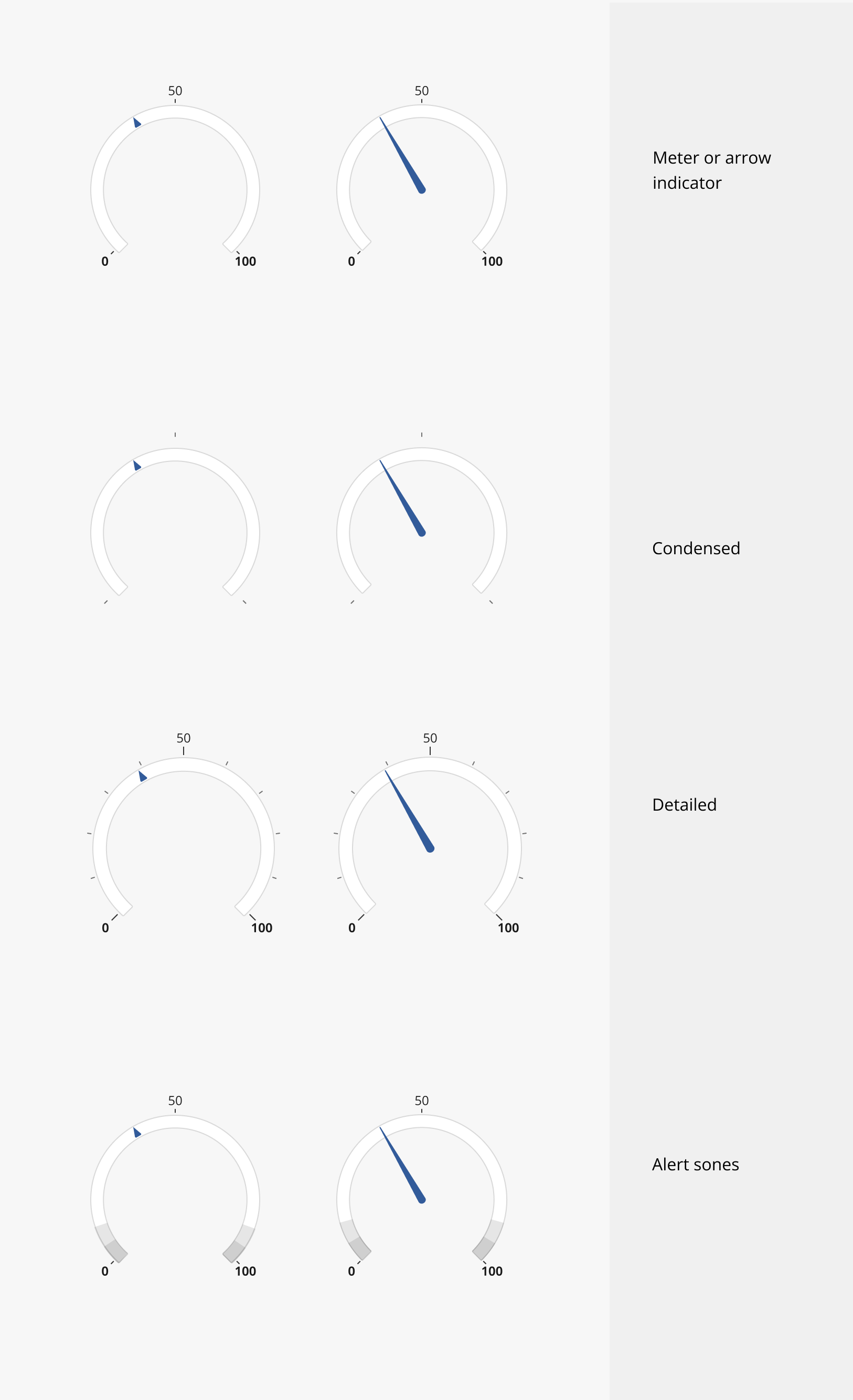

The radial arrow bar offer optional set point, two indicator types, alert areas and optional watch faces. The full set of variants can be found in the Figma library.

No items found.

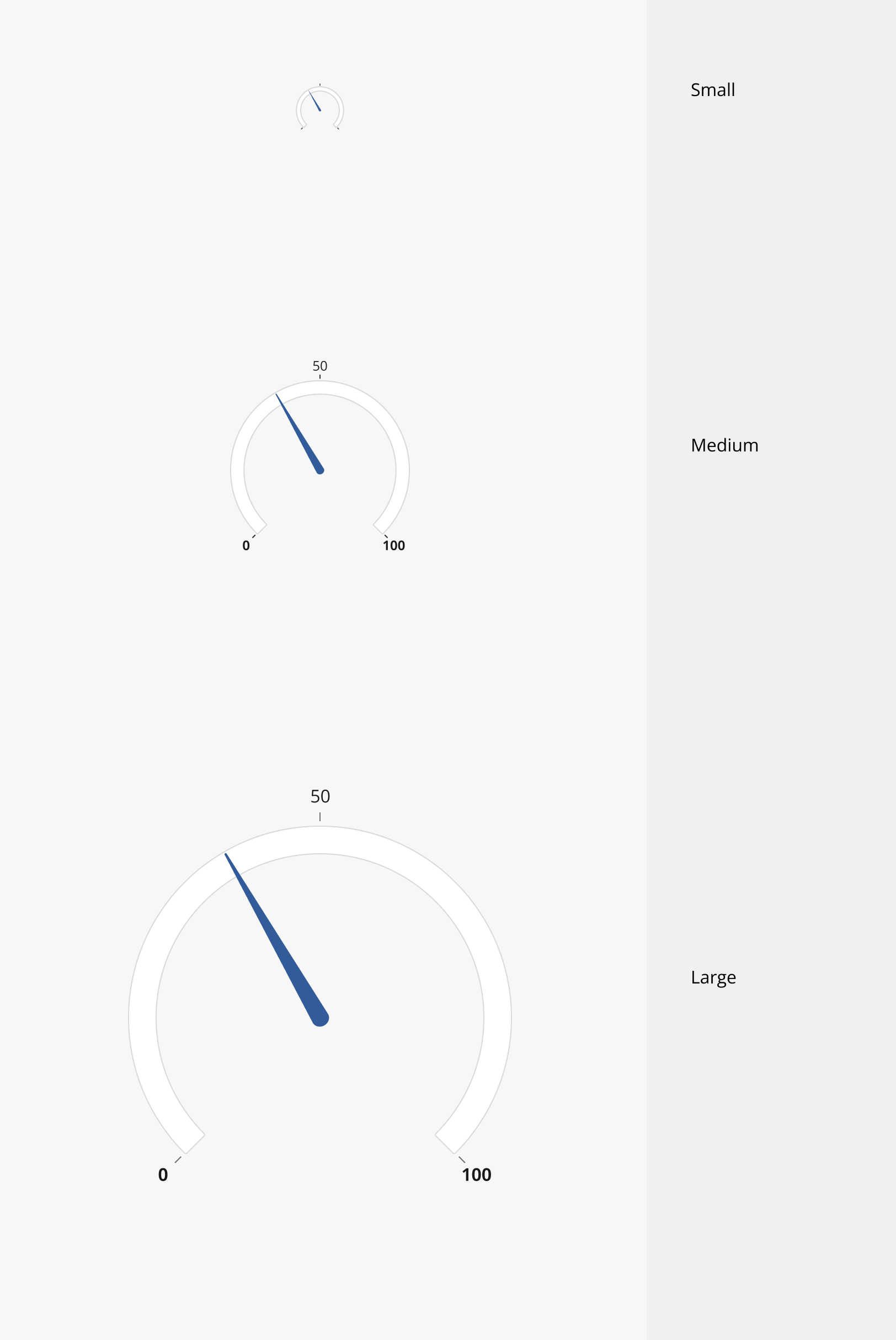

The components comes in three sizes. The small, medium and large version can be scaled independently while maintaining stroke thickness. This feature are implemented in the Figma files.
