Compass

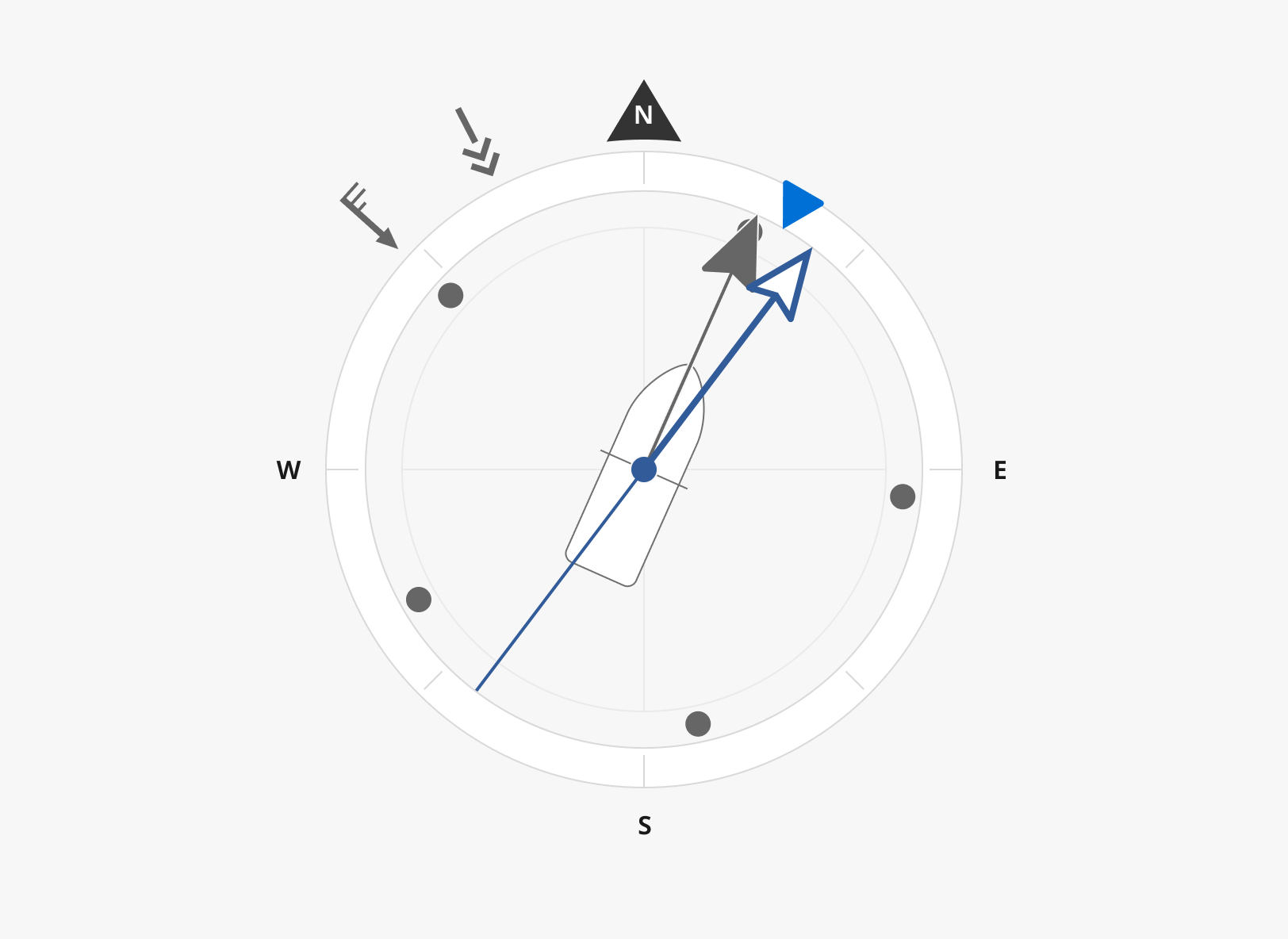

The compass is a nested component (combines many separate components). In this version it shows ROT (black dots moving around the watch face), wind, current, COG (blue outline arrow) and HDG (blue arrow). It is possible to add a yellow heading setpoint if appropriate. See Figma file.

Variations

No items found.

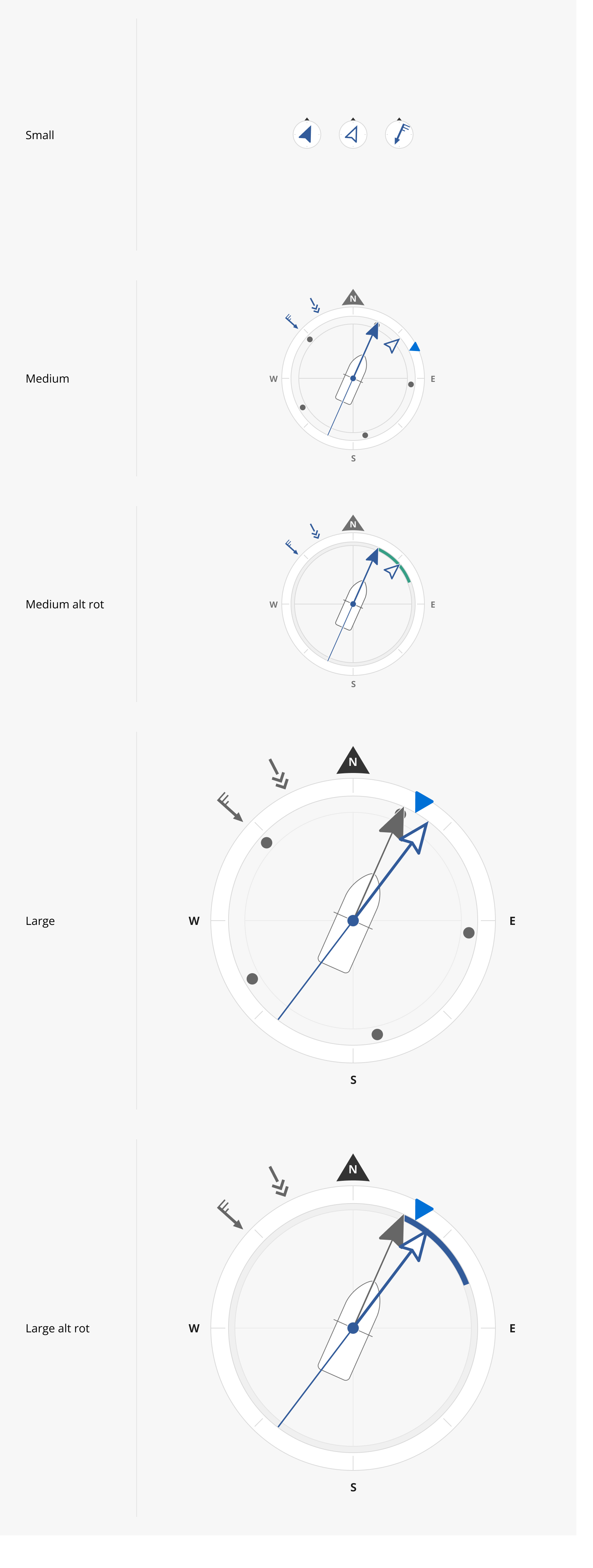

Sizes

Because the compass is a nested components of multiple indicators it is only available in medium and large sizes. To show the values with small instruments use the related small version of each value. The alternative version use a bar with direction colors to show ROT as degrees per minute.
