Main engine

The component shows a standard thruster component with an arrow (2) signaling the engine direction (does not change) and a blue bar (1) signaling thrust direction. Change in thrust is shown as a yellow set point (3).  Additional variations such as tick mark control and suggested set point can be found in the Figma file.


No items found.

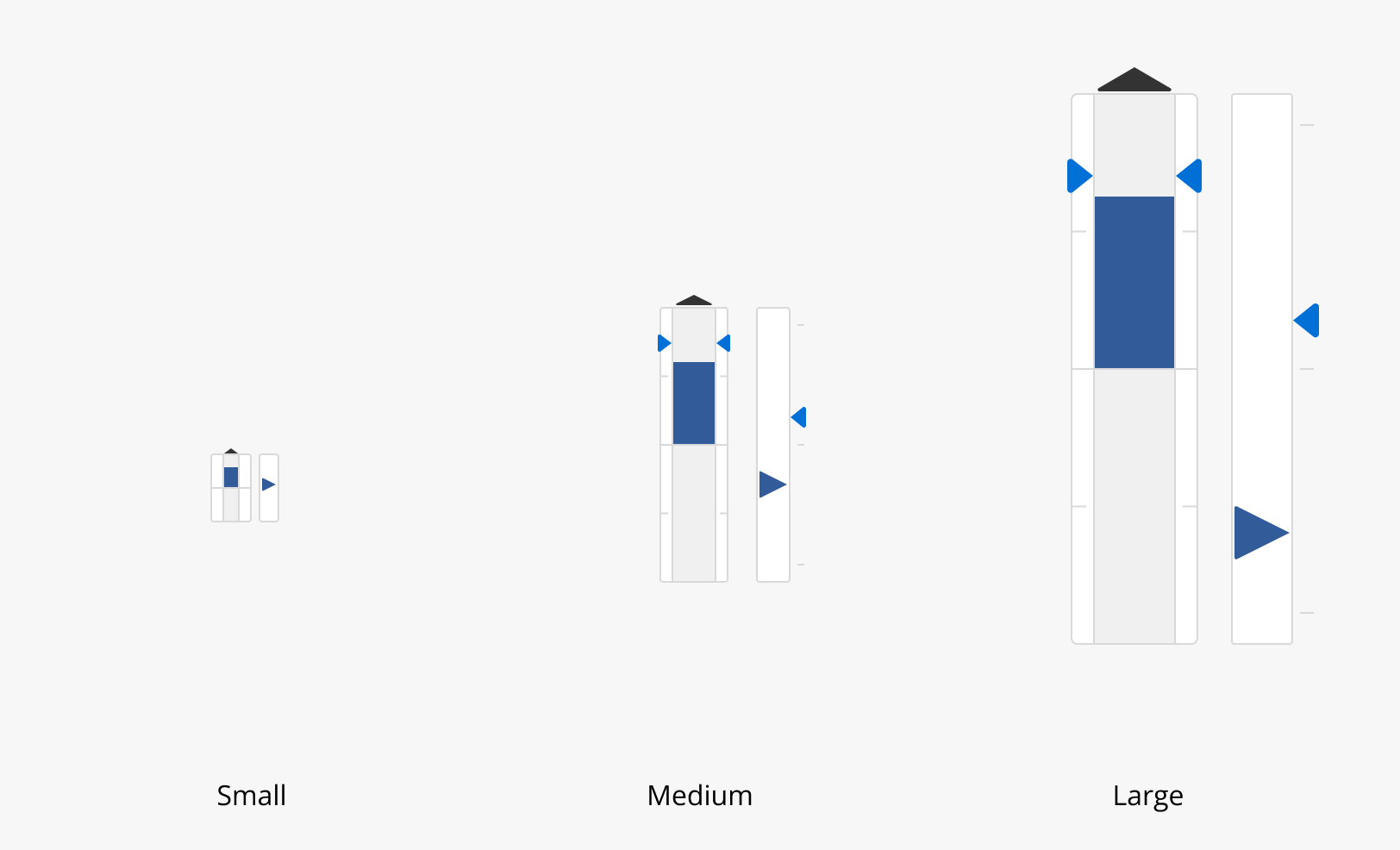

Main engine comes in 3 different sizes . The small, medium and large version can be scaled independently while maintaining stroke thickness. This feature are implemented in the Figma files.
