Azimuth

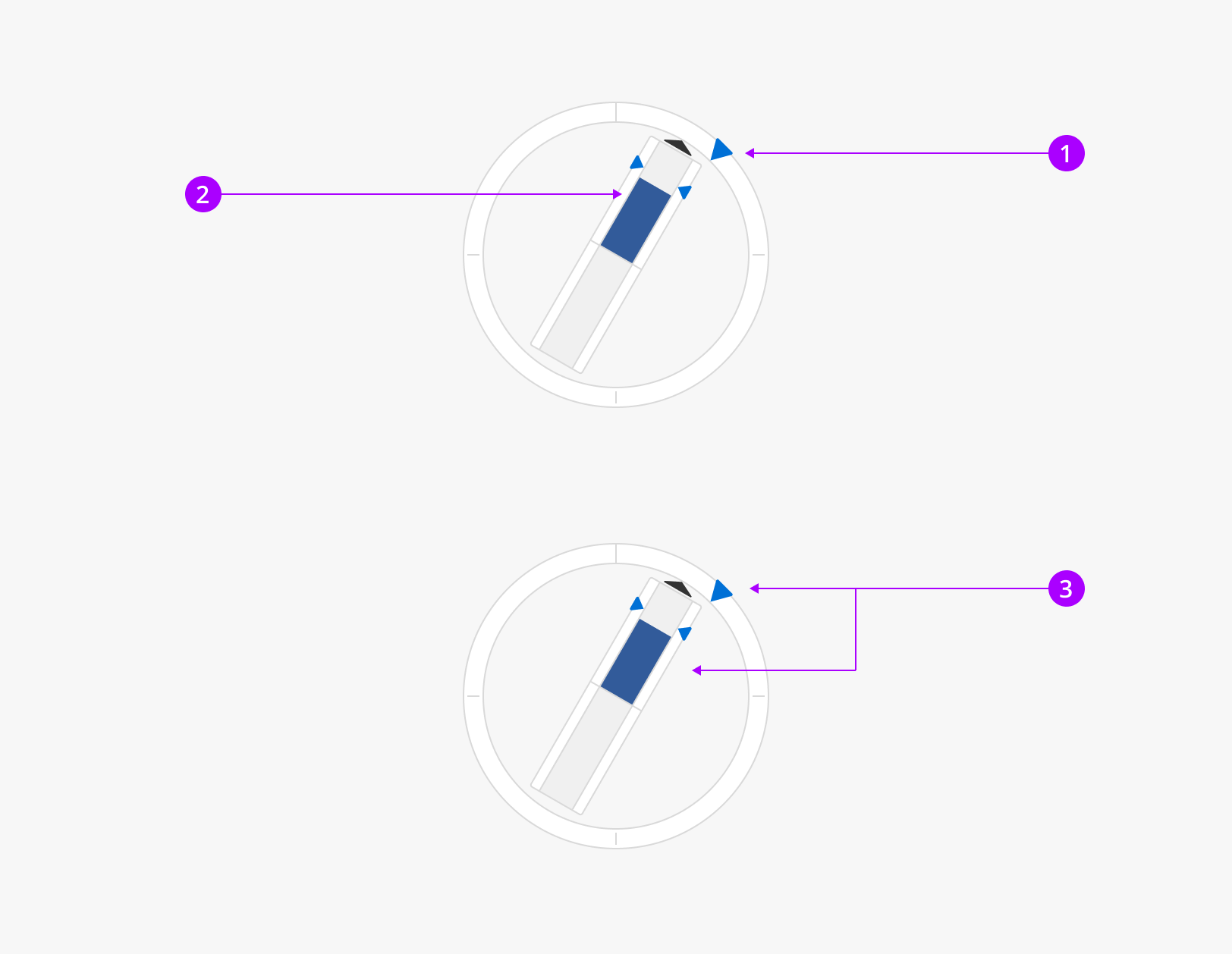

The azimuth is a thruster that can be rotated around its axis. The component shows a standard thruster component with an arrow (1) signaling the engines front. Blue color show power direction (2). Change in thrust or thruster angle is shown as a yellow set point. Additional variants such as optional tick marks and condensed versions can be found in the Figma file.
Variations

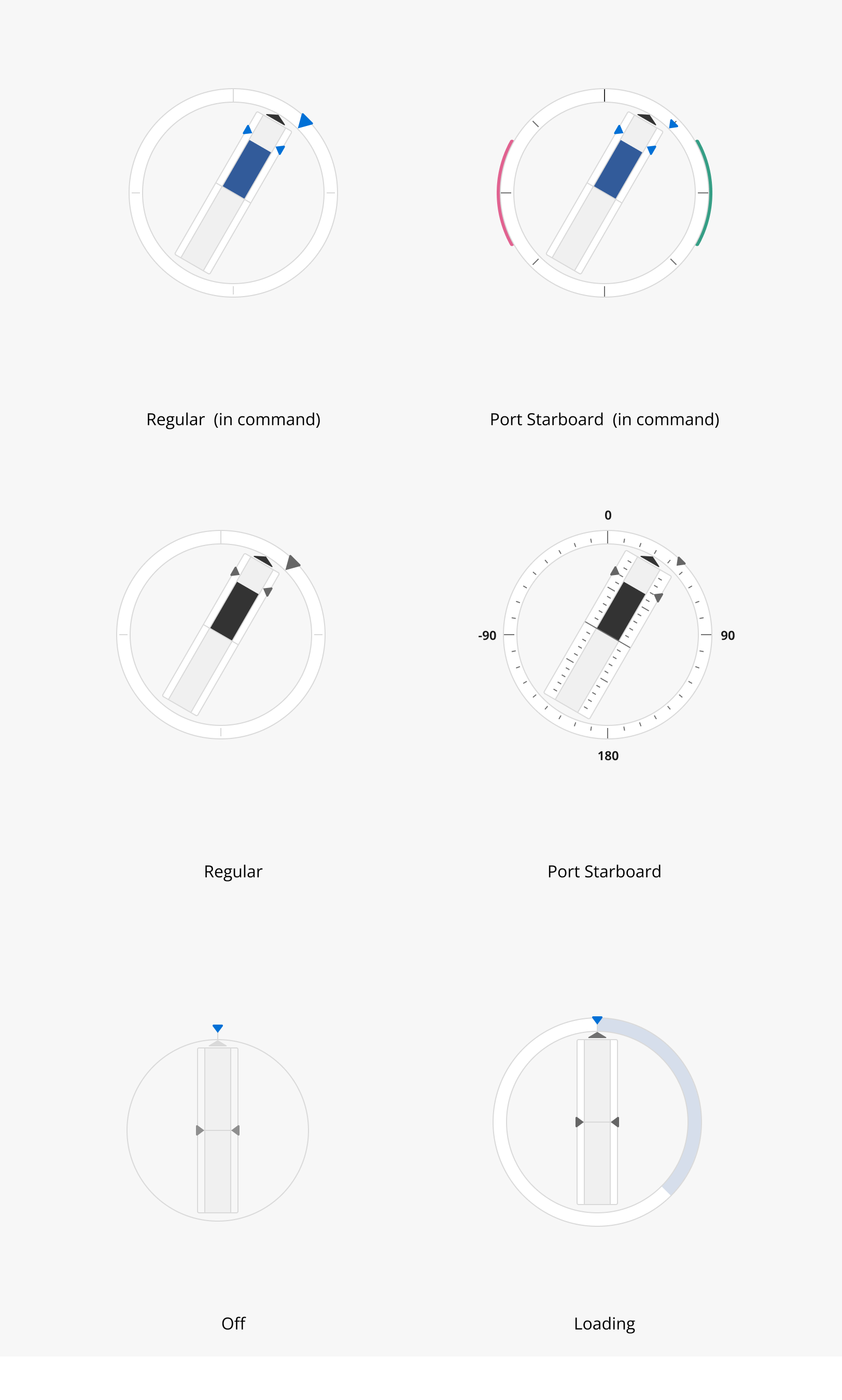

Azimuth comes in regular and Port Starboard variants.
No items found.
Sizes
The Azimuth is available in three main sizes. The small, medium and large version can be scaled independently while maintaining stroke thickness. This feature are implemented in the Figma files.
